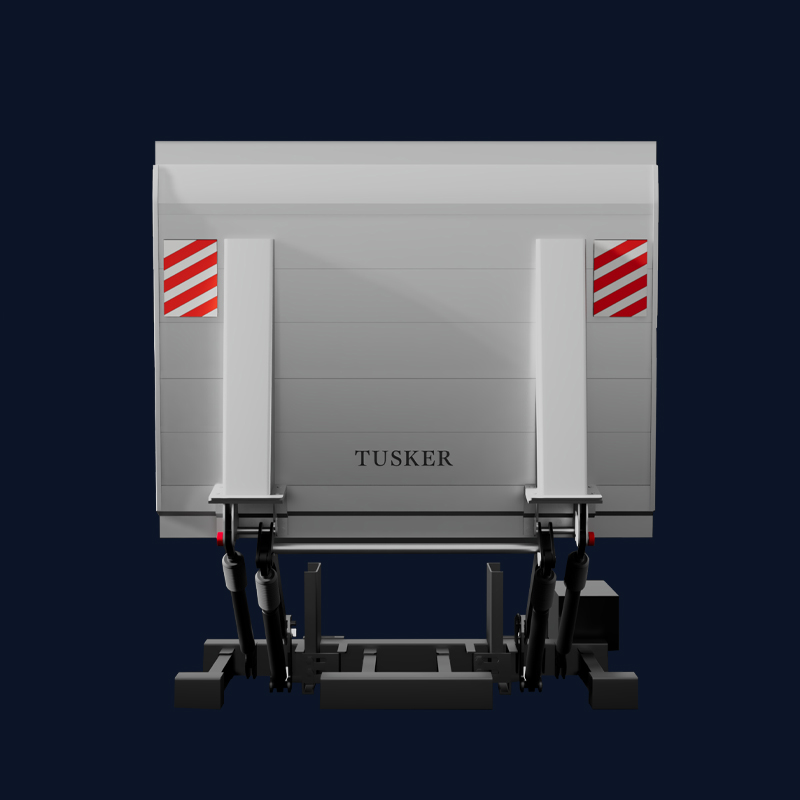

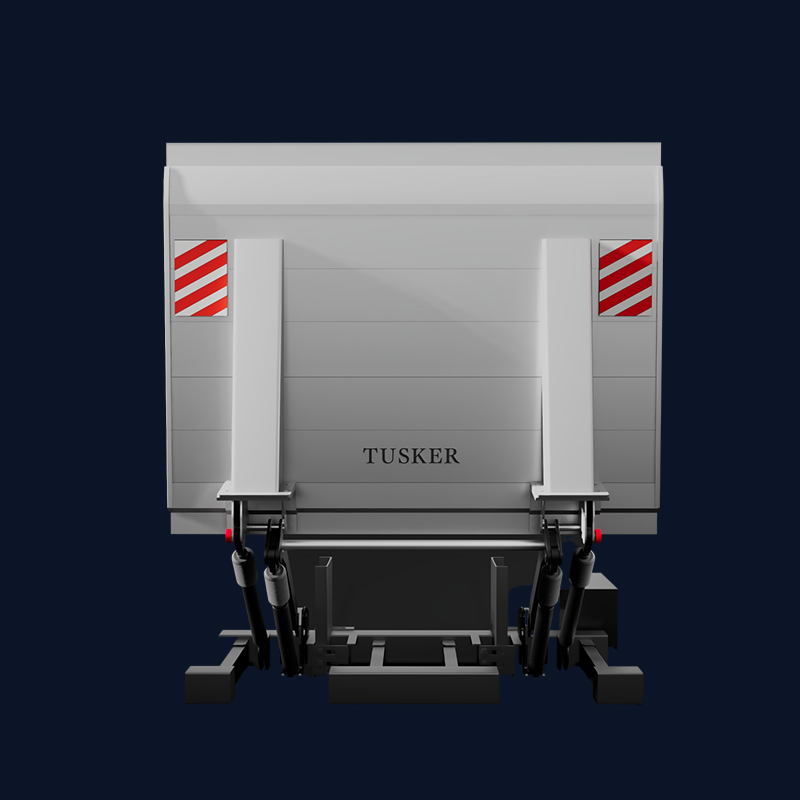

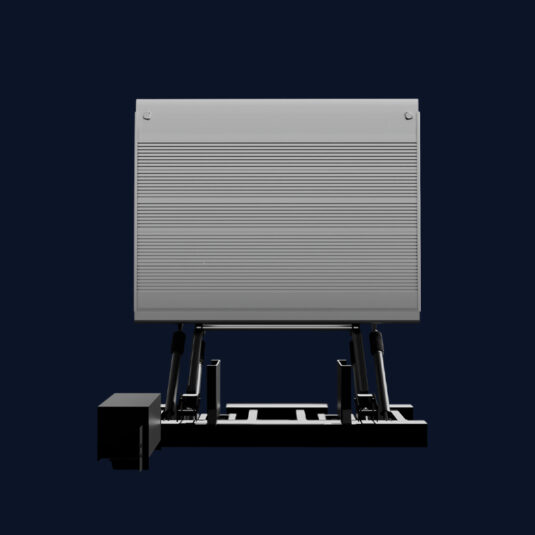

Cantilever Tail Lift
- Swift, Secure, and Cost-effective Loading: Tusker Tail Lifts provide the ultimate solution for efficient loading, meticulously manufactured in a top-notch ISO 9001, 14001, and 45000 certified facility in the UAE.
- Effortless Lifting and Lowering: Our system enables easy lifting and lowering of platforms to accommodate various types of cargo, with a reliable power pack system integrated into a robust steel frame featuring a thermostat cut-off mechanism to prevent overheating.
- Unique Safety Measures: Tusker Tail Lifts are equipped with cutting-edge safety features including recessed side warning lights, flashing floor lights, and an automatic ramping feature for enhanced safety during operation.
- Preferred Choice for Light & Medium-Duty Trucks: Thanks to their reliability, simplicity, flexibility, precision engineering, and ergonomic design, Tusker Tail Lifts have become the preferred choice for light and medium-duty trucks.
- Exceptional Service and Support: Tusker Engineering provides customers with exceptional service, technical support, and warranties, ensuring peace of mind and satisfaction with their Tail Lift products.
- ISO Certified Manufacturing: Manufactured in an ISO 9001, 14001, and 45000 certified facility in the UAE, ensuring the highest quality standards in production.
- Versatile Cargo Accommodation: Tusker Tail Lifts accommodate various types of cargo, offering flexibility and convenience for a wide range of transport needs.
Tail Lift Specifications
Specification | Steel Tail Lift | Aluminium Tail Lift |
---|---|---|
Models | TTL1S2216: Tusker Tail Lift Steel 1 Ton, 2.2 Mtr x 1.6 Mtr (Width x Depth) TTL1S2418: Tusker Tail Lift Steel 1 Ton, 2.4 Mtr x 1.8 Mtr (Width x Depth) |
TTL1A2216: Tusker Tail Lift Aluminium 1 Ton, 2.2 Mtr x 1.6 Mtr (Width x Depth) |
Capacity | 1 Ton Lifting Capacity | 1 Ton Lifting Capacity |
Platform | Fabricated Mild Steel Chequered Plate | Extruded Aluminium Profiles |
Platform Size | TTL1S2216 – 2.2m x 1.6m (width x depth) TTL1S2418 – 2.4m x 1.8m (width x depth) |
TTL1A2216 – 2.2m x 1.6m (width x depth) |
Frame Construction | All Welded Steel Construction | All Welded Steel Construction |
Lifting Frame | Cantilever Lift Type | Cantilever Lift Type |
Hydraulic Cylinders | Lifting Cylinders – Single Acting, Single Speed: 2 nos. Tilting Cylinders – Single Acting: 2 nos. |
Lifting Cylinders – Single Acting, Single Speed: 2 nos. Tilting Cylinders – Single Acting: 2 nos. |
Lighting | Floor & Side Flashing Lights | Floor & Side Flashing Lights |
Power Pack | 2500 Watts | 2500 Watts |
Voltage | 12V/24V DC | 12V/24V DC |
Controls | Fixed Control Panel Box Installed Kerb Side. One Wired Remote Control. | Fixed Control Panel Box Installed Kerb Side. One Wired Remote Control. |
Warranty | 2 years against manufacturing defects under standard operating conditions. | 2 years against manufacturing defects under standard operating conditions. |
